Viewing and measuring 3D cuts in the component form

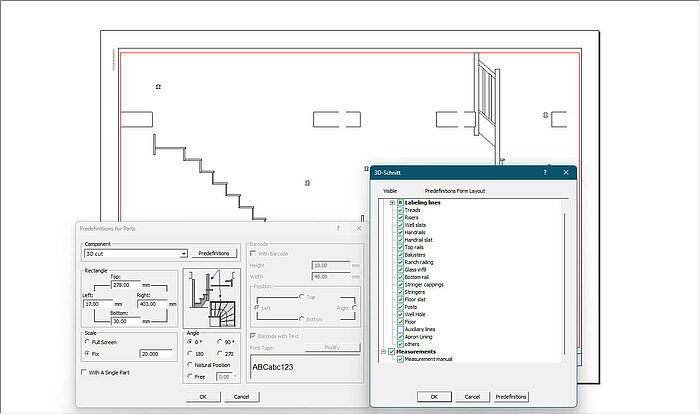

During the design process, it is now possible to view 3D cuts in the component form in the same way as in the railing view.

This feature supports multi-page forms and allows the targeted selection of parts. For even more accurate results, the drawings can also be customised and dimensioned in the measurement module - another step that makes your work more efficient and flexible.

Viewing and measuring 3D cuts in the component form
Viewing and measuring 3D cuts in the component form
Viewing and measuring 3D cuts in the component form
< >
